L1265 · Z-rail VMC
For heavy cutting with a Z-rail column.
Machine details

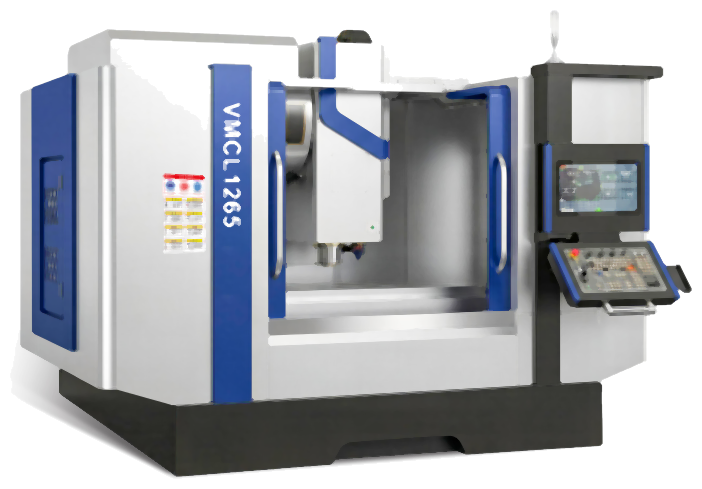

The 1,200 x 600 mm envelope of the VMC1265 with the Z axis carried directly on the column rail — a layout that keeps the spindle nose short over the table.
On an L-series machine the Z saddle does not overhang: the head rides the column rail itself. That shortens the distance between the spindle nose and the rail, which is where deflection starts when a small cutter is working at long reach. X and Y run on 45-size linear guides with C3 ballscrews fixed at both ends.
Travels are 1,200 x 650 x 650 mm, the table is 1,200 x 600 mm with 5-18-100 T-slots and carries 800 kg. Rapids are 24/24/18 m/min and the BT40/150 spindle stops at nothing unusual — a 24-station disc magazine changes tools in 2.5 s. Positioning 0.008 mm, repeatability 0.005 mm.
The machine is aimed at work where rigidity in Z matters more than table size: hard milling of pre-hardened stock, deep cavity roughing with small diameter cutters, and fixtures with tall clamping. It stands 3,300 x 2,600 x 3,360 mm at about 6,800 kg.
Detail photographs show the machine family and options. Final configuration is confirmed on the signed specification sheet.
Reference specifications
Missing values mean the item was not listed on the source sheet, not that the machine lacks the feature. Request the signed specification sheet for a full list.
