VMC855 · General-purpose VMC
VMC855 vertical machining center
For milling and drilling applications.
- Travel X/Y/Z
- 800 / 550 / 550 mm
- Table size
- 1000×550 mm
- Spindle
- BT40Φ150
VMC855 · General-purpose VMC
For milling and drilling applications.
Machine details
The VMC855 carries a 1000 x 550 mm worktable rated to 600 kg. That covers molds, fixtures and mid-size housings without stepping up to a larger frame.
X and Y rapid at 32 m/min and Z at 24 m/min across 800 / 550 / 550 mm of travel. Fast rapids shorten the non-cutting time that dominates small-part production.
A belt-driven BT40-150 spindle running to 8,000 rpm handles aluminium, steel and cast iron with a 24-station disc tool changer on a 2.5 second tool change.
At roughly 5,300 kg the machine has enough mass to damp vibration during roughing, which shows up in tool life and in the surface left by finishing passes.

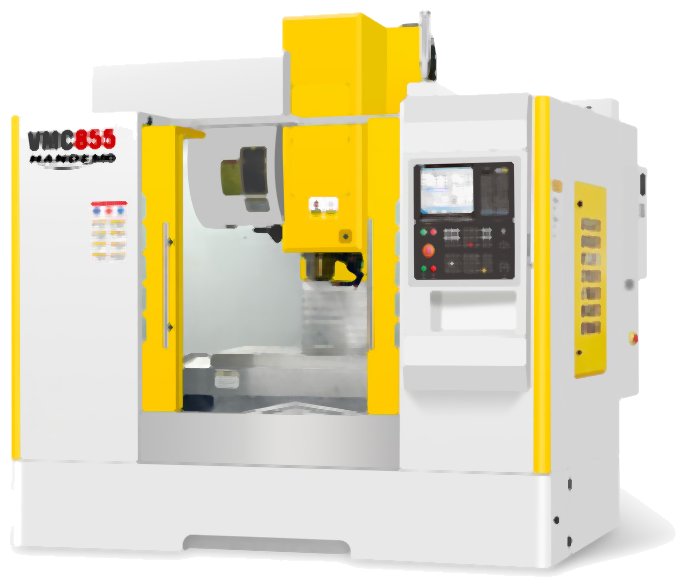

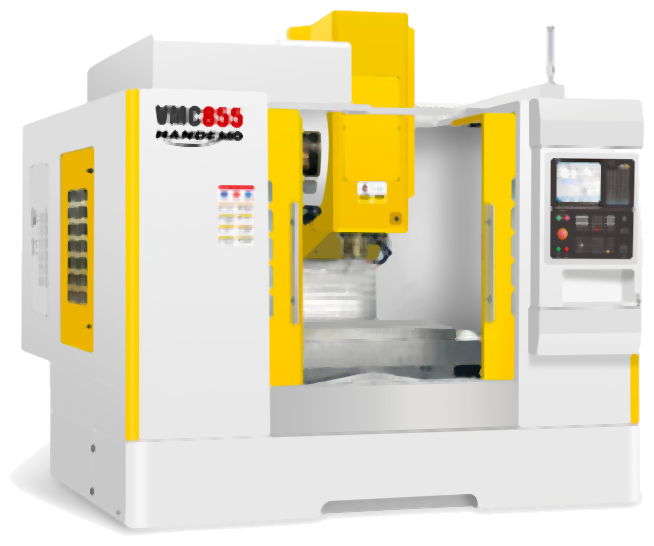

Detail photographs show the machine family and options. Final configuration is confirmed on the signed specification sheet.
Reference specifications
Missing values mean the item was not listed on the source sheet, not that the machine lacks the feature. Request the signed specification sheet for a full list.
Configuration
Material, blank size, features and tolerance.
Milling, drilling, tapping and fixturing.
Batch size, changeover and loading method.
Spindle, tooling, workholding and automation.
Molds and cores, plates and fixtures, housings, brackets and general prismatic parts. Application fit is confirmed against the part drawing.
Machine, standard tooling package, controller, documentation and commissioning scope as listed in the quotation.
Service & support
Drawing, material, tolerance and batch size.
Controller, spindle, tooling and workholding.
Foundation, utilities and agreed training scope.
Information, parts and service arrangements.
Same platform family
Send the drawing, material and batch size. We will review the configuration with you.
