VMC1265 · Heavy-duty VMC
VMC1265 vertical machining center
Review a larger working envelope.
- Travel X/Y/Z
- 1200 / 650 / 650 mm
- Table size
- 1200×600 mm
- Spindle
- BT40Φ150
VMC1265 · Heavy-duty VMC
Review a larger working envelope.
Machine details
The VMC1265 takes a 1200 x 600 mm table rated to 800 kg, with five 18 mm T-slots at 100 mm centres. That covers medium-heavy parts and general machining work.
X, Y and Z travels of 1200 / 650 / 650 mm give the spindle room to reach across a 1000 mm plate without repositioning. The extra Y travel over a VMC1160 helps on wider parts.
A BT40 spindle with a Φ150 nose covers aluminium, steel and cast iron work, matched to the rest of the standard model range so tooling carries across machines.
X and Y rapid at 24 m/min and Z at 18 m/min. On parts with many features, the time between cuts is a large share of the cycle.

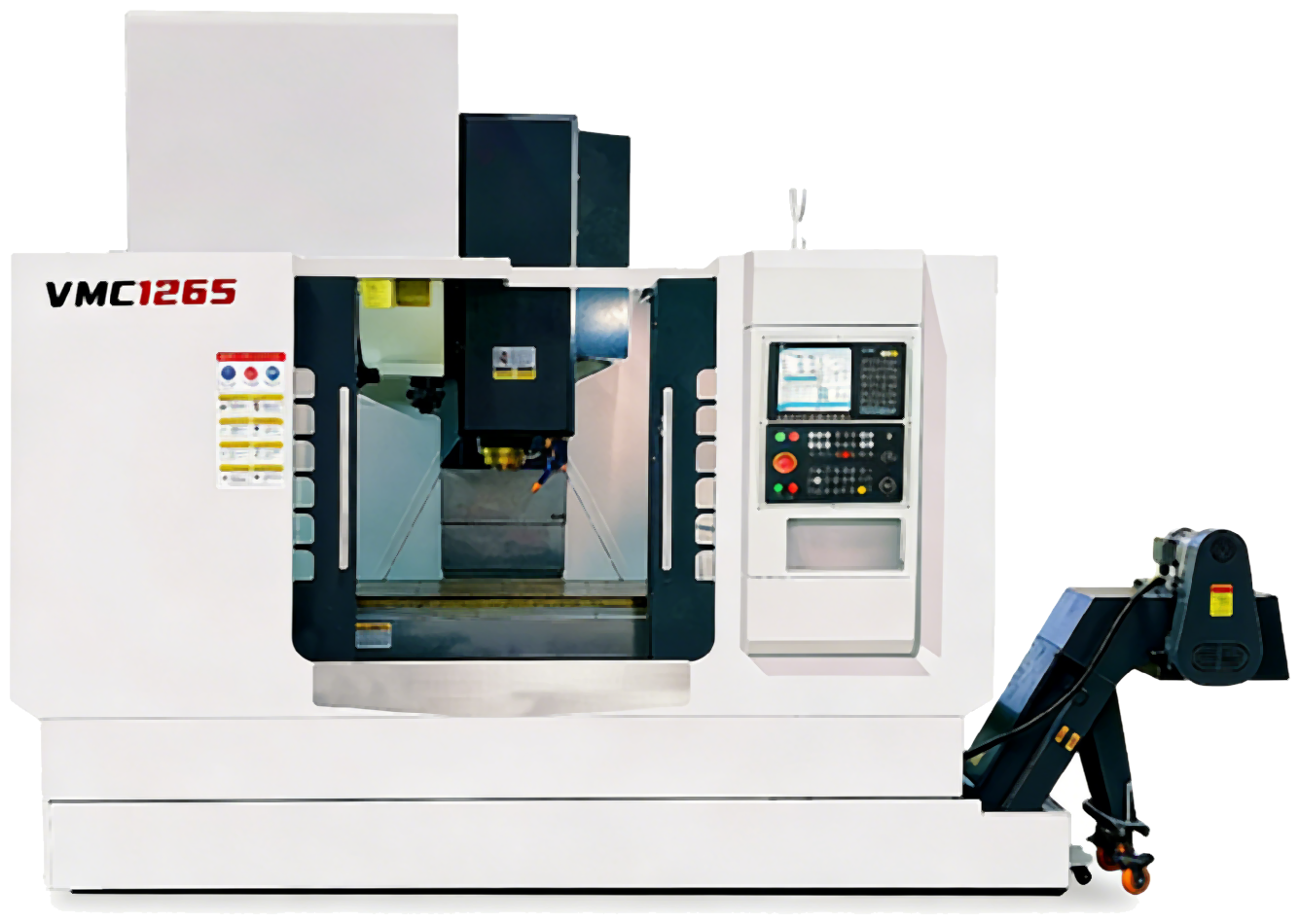

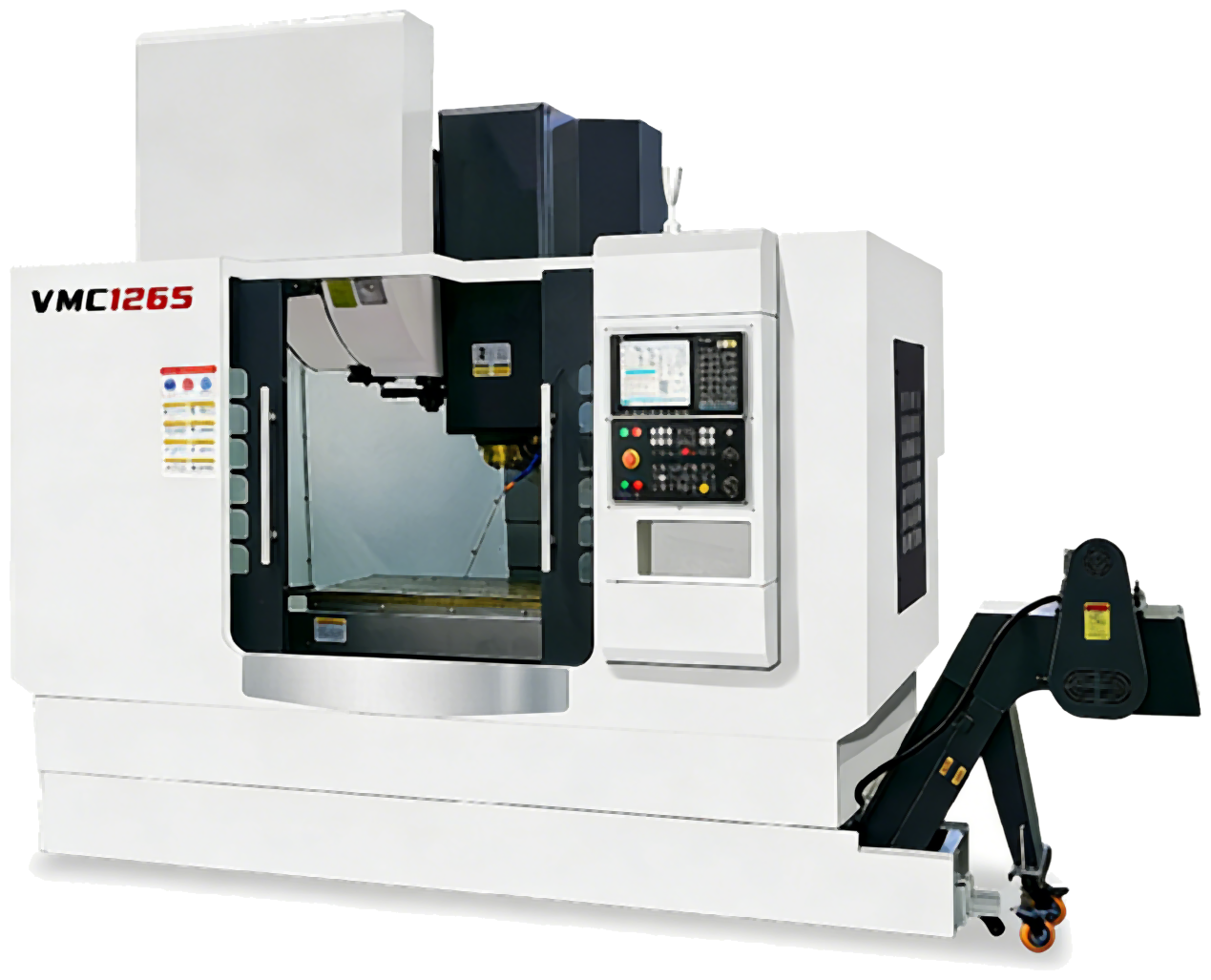

Detail photographs show the machine family and options. Final configuration is confirmed on the signed specification sheet.
Reference specifications
Missing values mean the item was not listed on the source sheet, not that the machine lacks the feature. Request the signed specification sheet for a full list.
Configuration
Material, blank size, features and tolerance.
Milling, drilling, tapping and fixturing.
Batch size, changeover and loading method.
Spindle, tooling, workholding and automation.
Molds and cores, plates and fixtures, housings, brackets and general prismatic parts. Application fit is confirmed against the part drawing.
Machine, standard tooling package, controller, documentation and commissioning scope as listed in the quotation.
Service & support
Drawing, material, tolerance and batch size.
Controller, spindle, tooling and workholding.
Foundation, utilities and agreed training scope.
Information, parts and service arrangements.

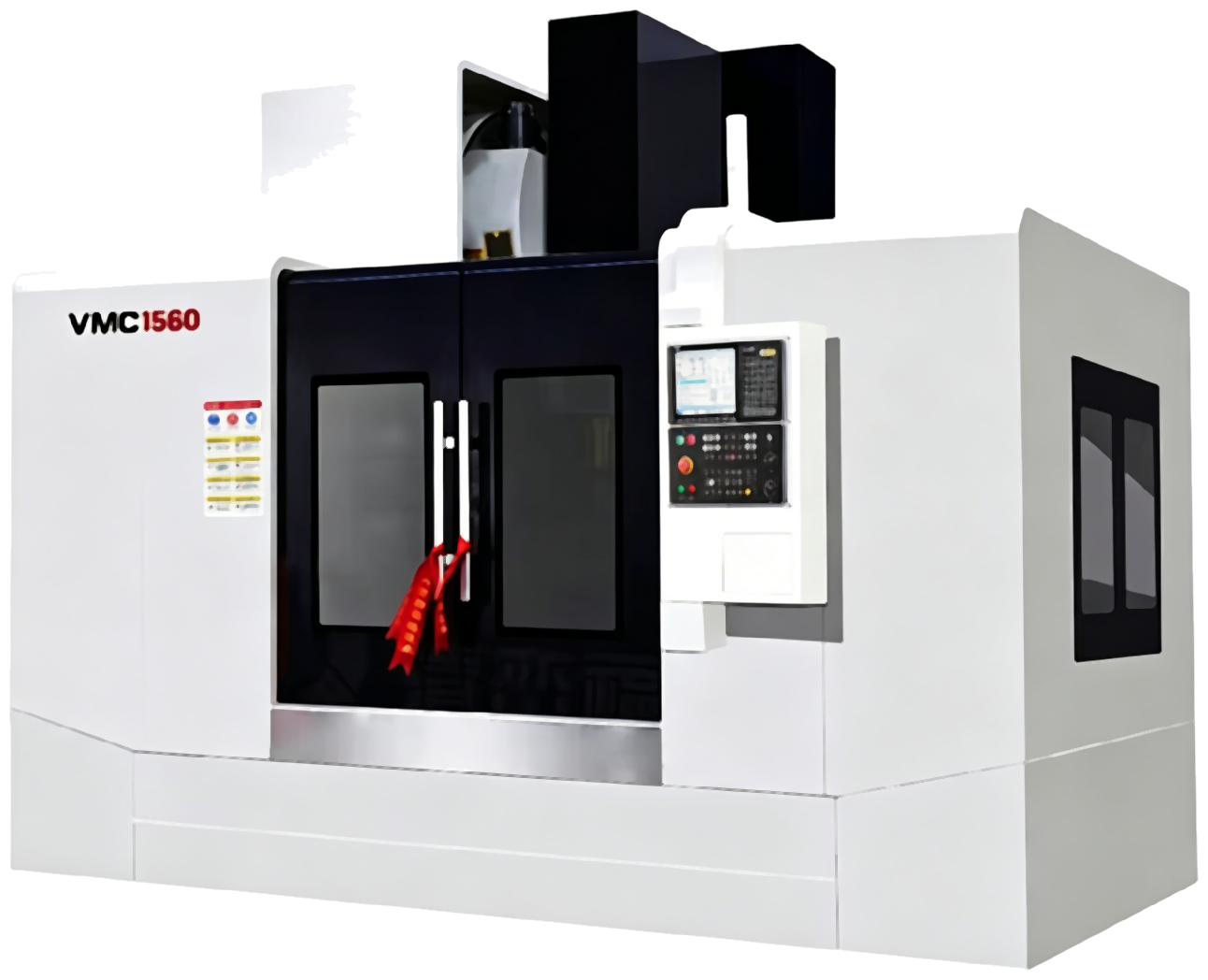

Same platform family
Review larger workpieces and loading needs.
Send the drawing, material and batch size. We will review the configuration with you.
