VMC1690 · Heavy-duty VMC

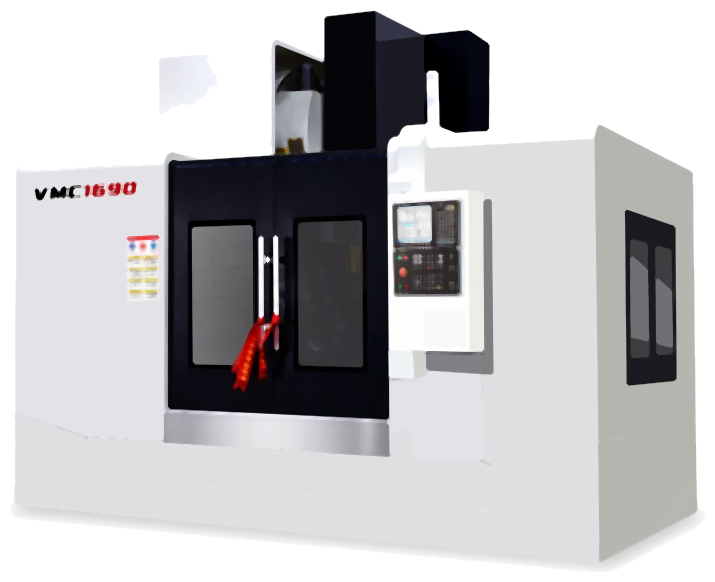

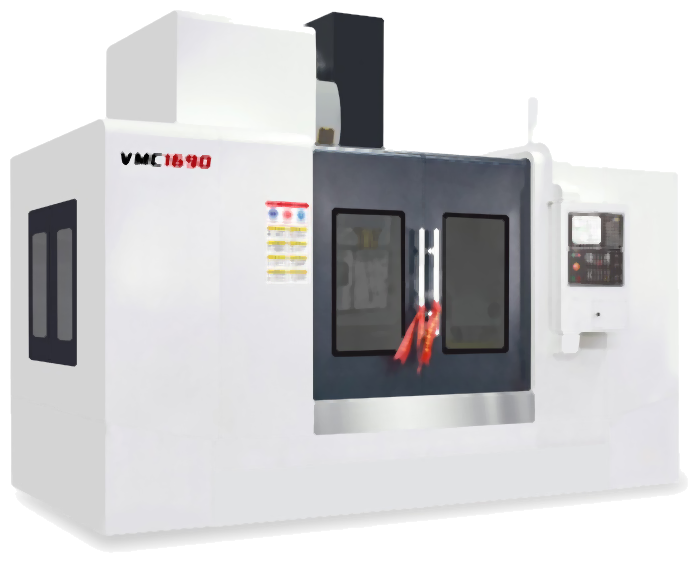

VMC1690 vertical machining center
Review larger workpieces and loading needs.
- Travel X/Y/Z
- 1600 / 900 / 700 mm
- Table size
- 1600×800 mm
- Spindle
- BT50-190
VMC1690 · Heavy-duty VMC
Review larger workpieces and loading needs.
Machine details
A 1600 x 800 mm table rated to 1,500 kg handles the mold bases and die plates that are too big for a mid-size VMC. Large workpieces stay on one machine instead of being split across two operations.
X, Y and Z travels of 1600 / 900 / 700 mm let the spindle cover a full die plate without stepping the fixture around. Deep pockets at the far end of the table stay reachable.
A BT50-190 taper at 6,000 rpm carries the torque for heavy roughing in hardened steel and cast iron. The bigger taper also resists the tool deflection that shows up in deep cavities.
X and Y rapid at 20 m/min and Z at 14 m/min. On large plates where the tool has to travel far between pockets, that speed is what keeps cycle time in check.
Detail photographs show the machine family and options. Final configuration is confirmed on the signed specification sheet.
Reference specifications
Missing values mean the item was not listed on the source sheet, not that the machine lacks the feature. Request the signed specification sheet for a full list.
Configuration
Material, blank size, features and tolerance.
Milling, drilling, tapping and fixturing.
Batch size, changeover and loading method.
Spindle, tooling, workholding and automation.
Molds and cores, plates and fixtures, housings, brackets and general prismatic parts. Application fit is confirmed against the part drawing.
Machine, standard tooling package, controller, documentation and commissioning scope as listed in the quotation.
Service & support
Drawing, material, tolerance and batch size.
Controller, spindle, tooling and workholding.
Foundation, utilities and agreed training scope.
Information, parts and service arrangements.
Same platform family
Send the drawing, material and batch size. We will review the configuration with you.
