VMC1370 vertical machining center
Discuss mold and plate machining.
- Travel X/Y/Z
- 1300 / 700 / 750 mm
- Table size
- 1400×700 mm
- Spindle
- BT40-150
VMC1370 · Heavy-duty VMC
Discuss mold and plate machining.
Machine details
The VMC1370 uses a ribbed bed and column with box ways rather than linear guides, which resists deflection when you take deep passes in mold plate or steel. That rigidity is what keeps a 9000 kg machine stable rather than lively.
A 1400 x 700 mm table with a 800 kg load rating carries mold bases, die plates and multi-feature housings that overflow a smaller VMC. Five 18 mm T-slots at 130 mm centres give flexible clamping.
A BT40-150 spindle running to 8,000 rpm with rigid tapping covers both roughing and finishing. The larger taper nose than a standard BT40 adds stiffness without moving to a heavier BT50 tooling system.
X and Y rapid at 24 m/min and Z at 18 m/min across travels of 1300 / 700 / 750 mm. On plates with many pockets, fast positioning between features adds up over a shift.

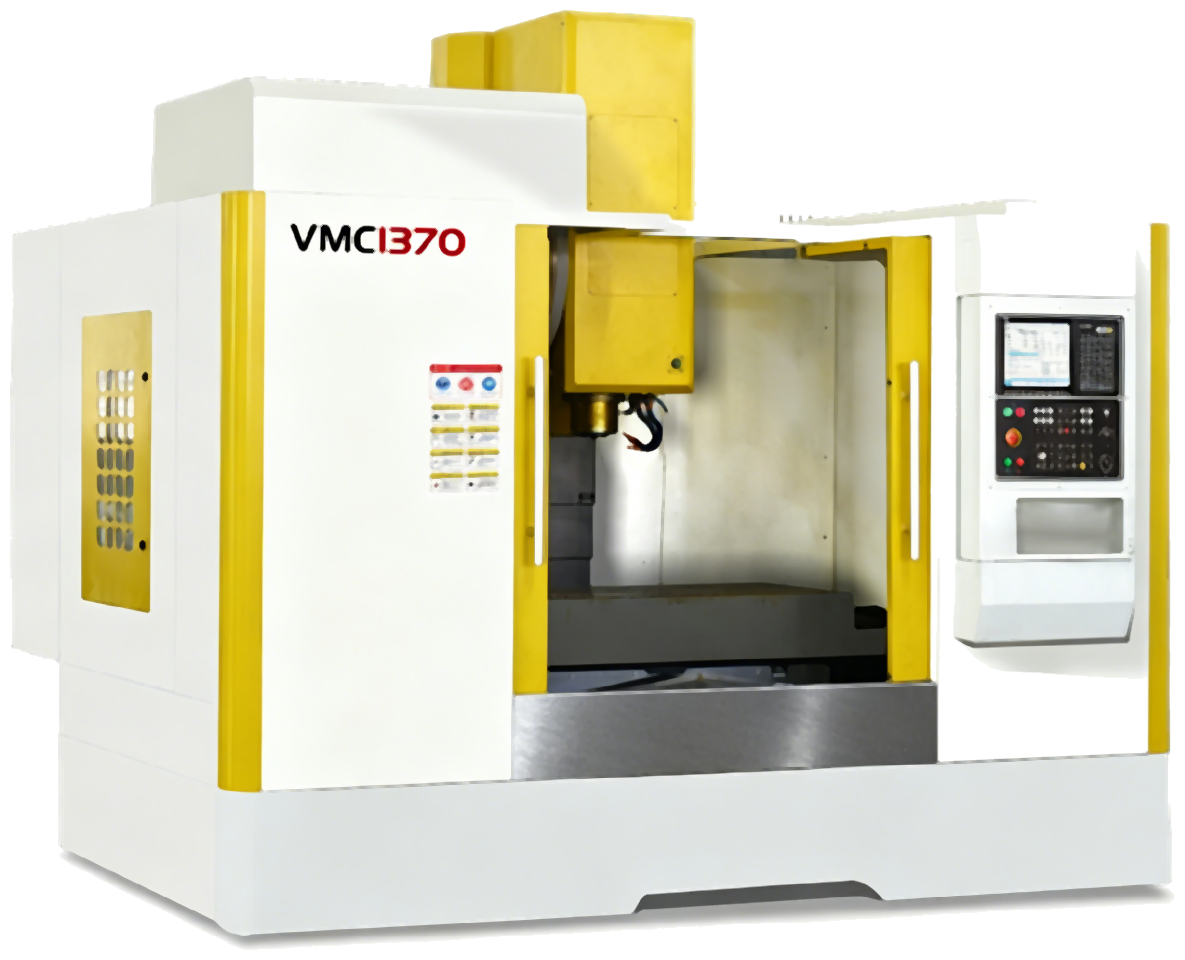

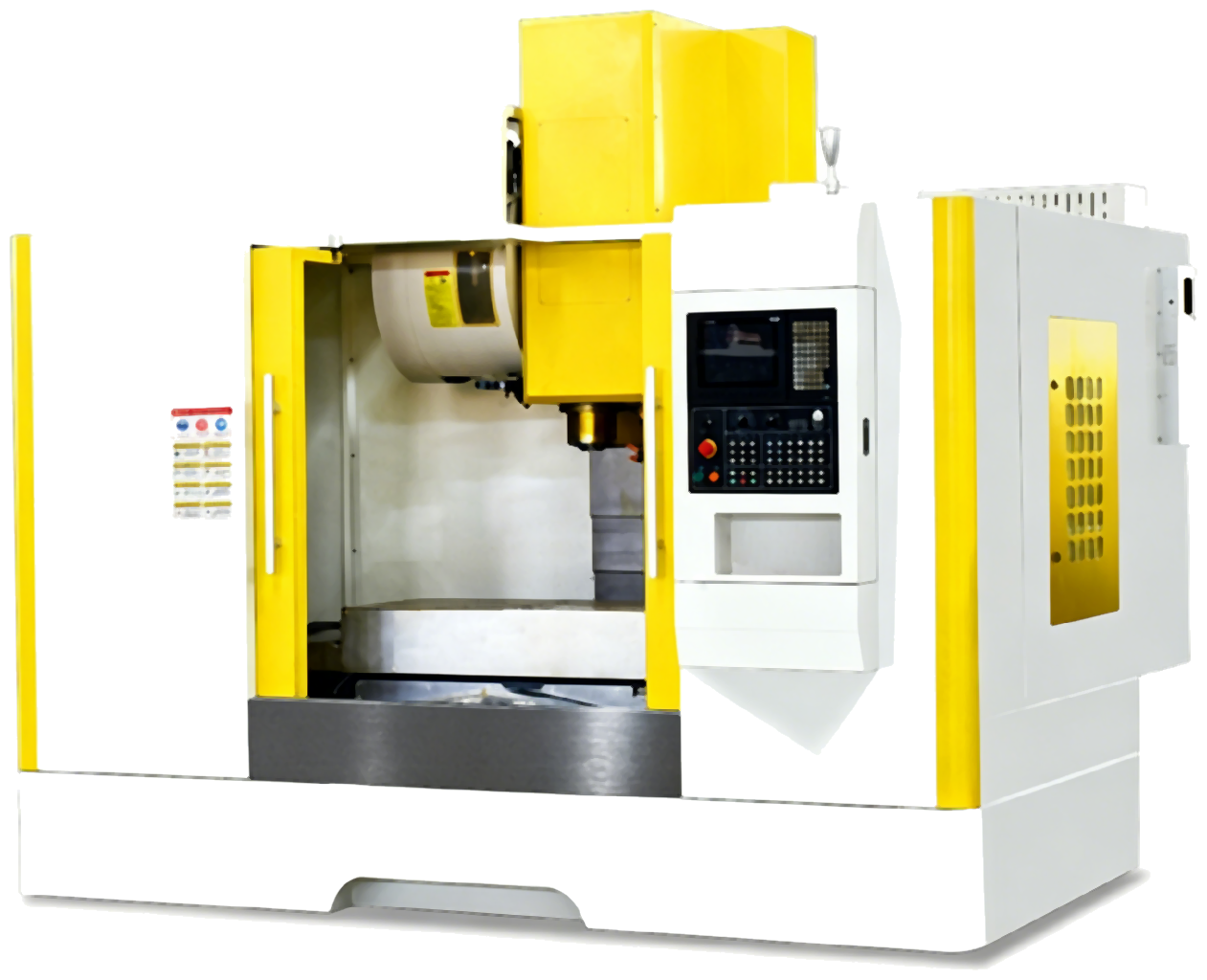

Detail photographs show the machine family and options. Final configuration is confirmed on the signed specification sheet.
Reference specifications
Missing values mean the item was not listed on the source sheet, not that the machine lacks the feature. Request the signed specification sheet for a full list.
Configuration
Material, blank size, features and tolerance.
Milling, drilling, tapping and fixturing.
Batch size, changeover and loading method.
Spindle, tooling, workholding and automation.
Molds and cores, plates and fixtures, housings, brackets and general prismatic parts. Application fit is confirmed against the part drawing.
Machine, standard tooling package, controller, documentation and commissioning scope as listed in the quotation.
