VMC1560 · Heavy-duty VMC
VMC1560 vertical machining center
For long parts on a 2200 mm table.
- Travel X/Y/Z
- 1500 / 650 / 650 mm
- Table size
- 2200×600 mm
- Spindle
- BT40-150
VMC1560 · Heavy-duty VMC
For long parts on a 2200 mm table.
Machine details
A 2200×600 mm table with 1500 kg load capacity handles long shafts, large plates, machine tool parts and multi-station fixtures that cannot fit on shorter VMC tables.
1500 mm X-travel covers long components in one setup, reducing re-fixturing and improving accuracy on elongated parts.
The 1500 kg maximum table load supports heavy fixtures and stacked workpieces, ideal for batch production of large parts.
A reinforced bed and column keep the machine stable under heavy cuts, protecting accuracy across long production runs.

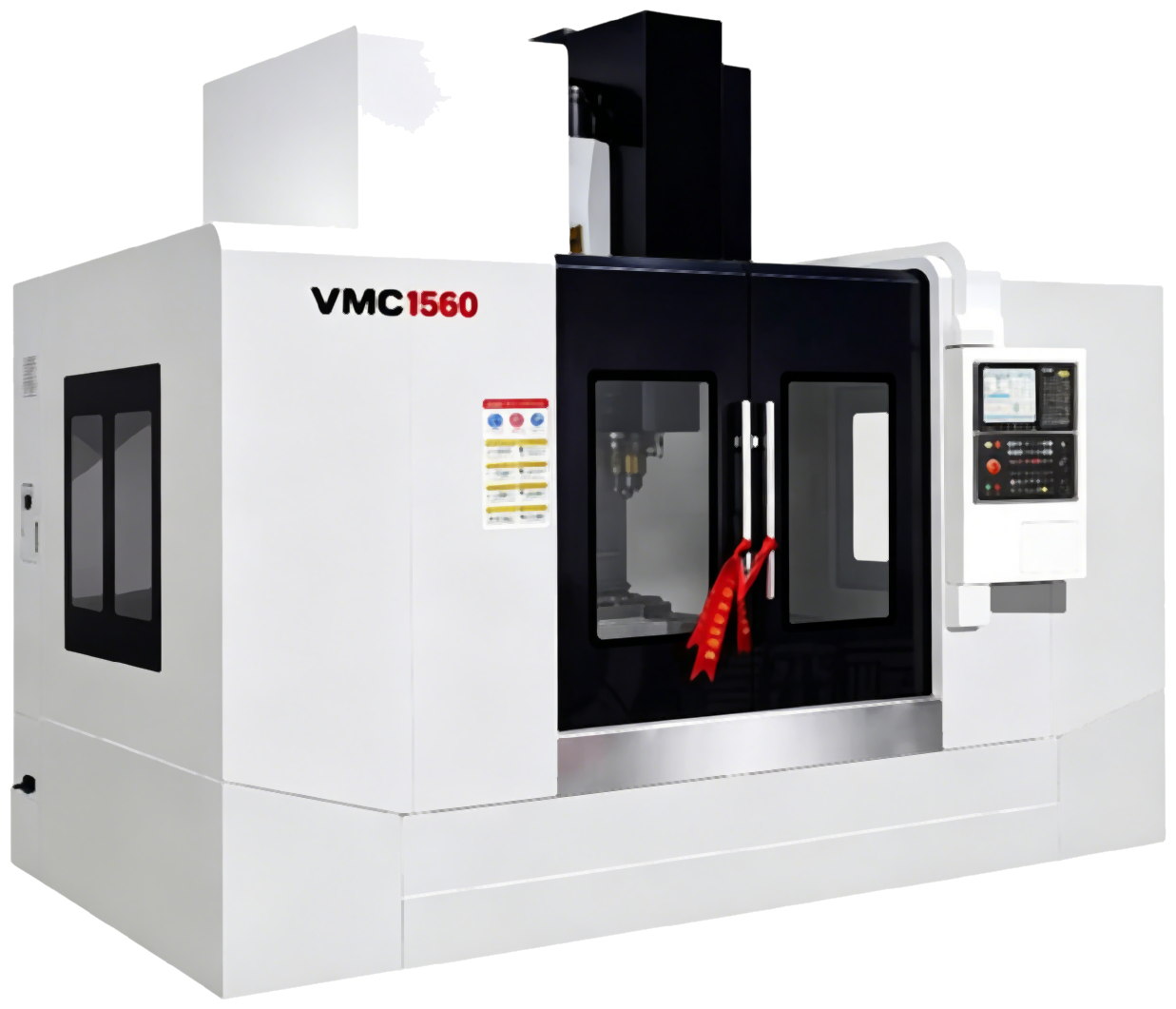

Detail photographs show the machine family and options. Final configuration is confirmed on the signed specification sheet.
Reference specifications
Missing values mean the item was not listed on the source sheet, not that the machine lacks the feature. Request the signed specification sheet for a full list.
Configuration
Material, blank size, features and tolerance.
Milling, drilling, tapping and fixturing.
Batch size, changeover and loading method.
Spindle, tooling, workholding and automation.
Molds and cores, plates and fixtures, housings, brackets and general prismatic parts. Application fit is confirmed against the part drawing.
Machine, standard tooling package, controller, documentation and commissioning scope as listed in the quotation.
Service & support
Drawing, material, tolerance and batch size.
Controller, spindle, tooling and workholding.
Foundation, utilities and agreed training scope.
Information, parts and service arrangements.
Same platform family
Review larger workpieces and loading needs.
Send the drawing, material and batch size. We will review the configuration with you.
