VMC1160 · General-purpose VMC
VMC1160 vertical machining center
For medium-size machining requirements.
- Travel X/Y/Z
- 1100 / 600 / 600 mm
- Table size
- 1200×600 mm
- Spindle
- BT40Φ150
VMC1160 · General-purpose VMC
For medium-size machining requirements.
Machine details
The VMC1160 carries a 1200 x 600 mm table rated to 800 kg. Larger mold plates and heavy fixtures stay on the machine without a swap to a bigger frame.
X and Y rapid at 24 m/min and Z at 18 m/min across 1100 / 600 / 600 mm of travel. The X travel comfortably clears a 1000 mm plate position in one setup.
A belt-driven BT40 spindle with a Φ150 nose runs to 8,000 rpm, paired with a 24-station disc tool changer on a 2.5 second tool change.

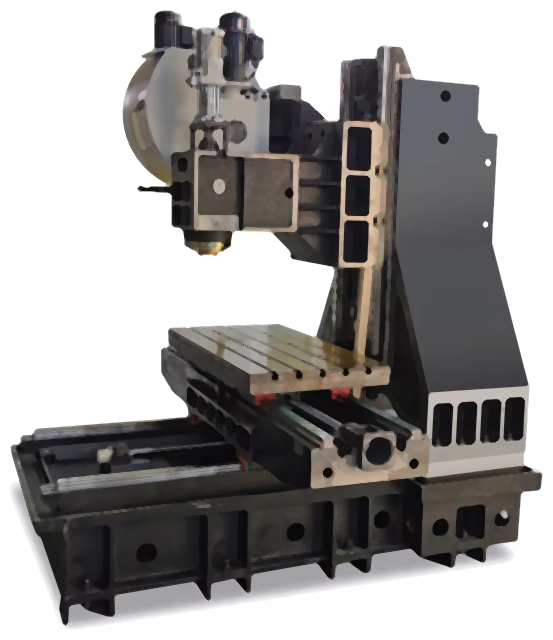

The bed and column are ribbed castings with box ways, giving the 6,500 kg machine the rigidity to rough steel and cast iron without chatter.

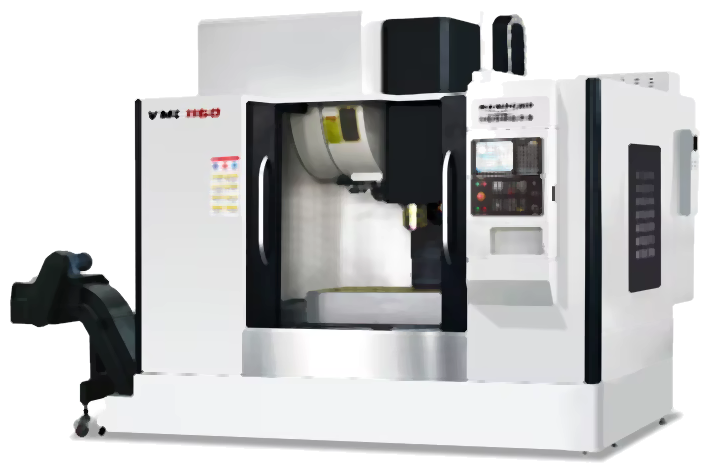

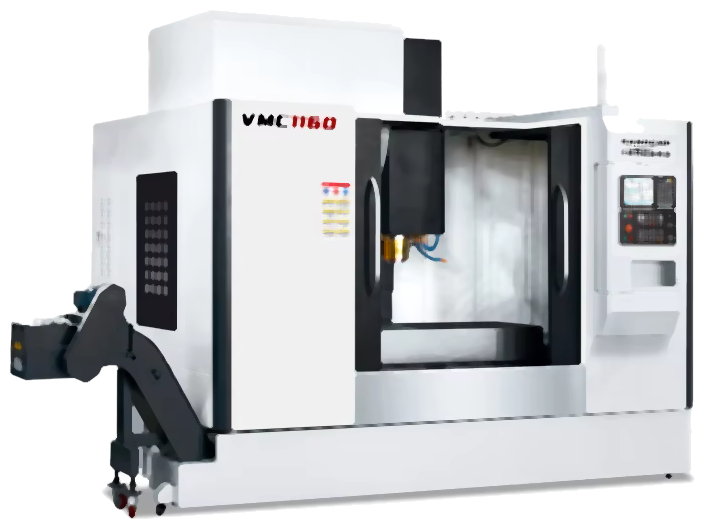

Detail photographs show the machine family and options. Final configuration is confirmed on the signed specification sheet.
Reference specifications
Missing values mean the item was not listed on the source sheet, not that the machine lacks the feature. Request the signed specification sheet for a full list.
Configuration
Material, blank size, features and tolerance.
Milling, drilling, tapping and fixturing.
Batch size, changeover and loading method.
Spindle, tooling, workholding and automation.
Molds and cores, plates and fixtures, housings, brackets and general prismatic parts. Application fit is confirmed against the part drawing.
Machine, standard tooling package, controller, documentation and commissioning scope as listed in the quotation.
Service & support
Drawing, material, tolerance and batch size.
Controller, spindle, tooling and workholding.
Foundation, utilities and agreed training scope.
Information, parts and service arrangements.
Same platform family
Send the drawing, material and batch size. We will review the configuration with you.
