VMC650 · General-purpose VMC
VMC650 vertical machining center
For compact general machining.
- Travel X/Y/Z
- 650 / 400 / 550 mm
- Table size
- 1000×400 mm
- Spindle
- BT40Φ120
VMC650 · General-purpose VMC
For compact general machining.
Machine details
A 1000 x 400 mm table rated to 400 kg gives the VMC650 useful capacity for its size. The machine occupies roughly 2400 x 2100 x 2300 mm, so it fits a crowded floor.
X and Y rapid at 32 m/min and Z at 24 m/min across 650 / 400 / 550 mm of travel. Fast positioning is what makes small-part batches economical.
A belt-driven BT40 spindle with a Φ120 nose runs to 8,000 rpm, with a 16-station disc tool changer on a 2.5 second tool change.
The 3,800 kg casting is heavy for a machine this size, which is what gives it the stability to finish parts that need a clean surface.

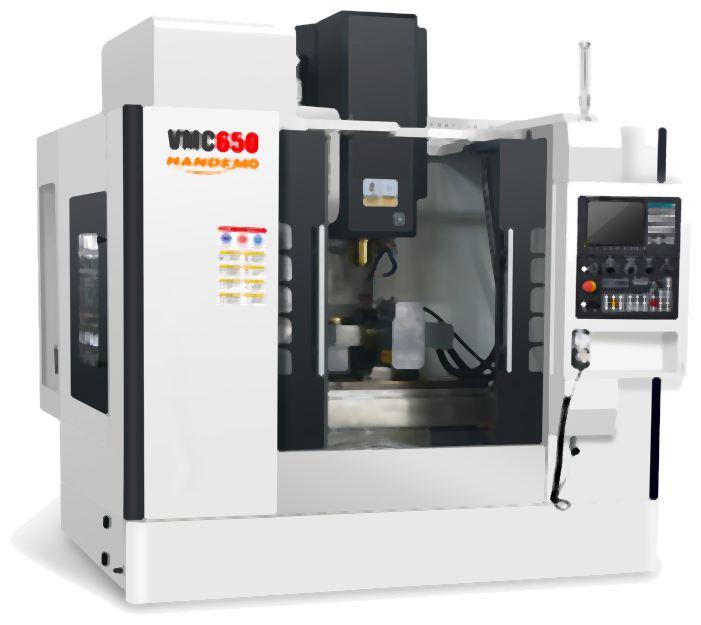

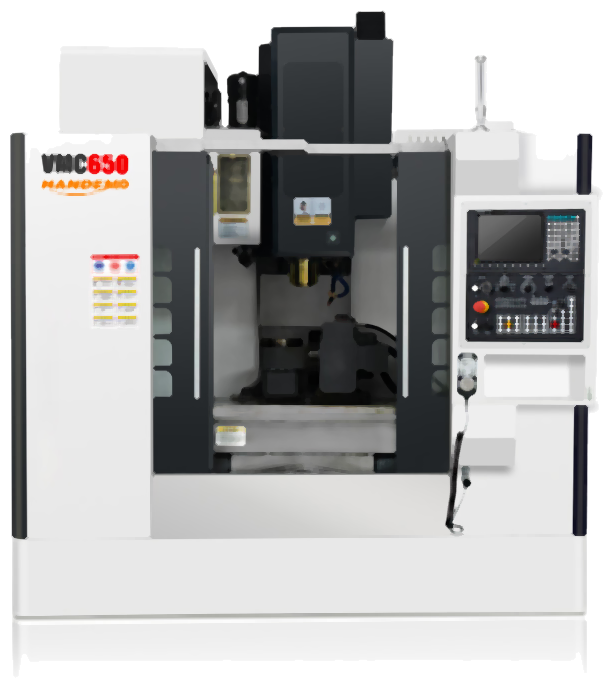

Detail photographs show the machine family and options. Final configuration is confirmed on the signed specification sheet.
Reference specifications
Missing values mean the item was not listed on the source sheet, not that the machine lacks the feature. Request the signed specification sheet for a full list.
Configuration
Material, blank size, features and tolerance.
Milling, drilling, tapping and fixturing.
Batch size, changeover and loading method.
Spindle, tooling, workholding and automation.
Molds and cores, plates and fixtures, housings, brackets and general prismatic parts. Application fit is confirmed against the part drawing.
Machine, standard tooling package, controller, documentation and commissioning scope as listed in the quotation.
Service & support
Drawing, material, tolerance and batch size.
Controller, spindle, tooling and workholding.
Foundation, utilities and agreed training scope.
Information, parts and service arrangements.
Same platform family
Send the drawing, material and batch size. We will review the configuration with you.
