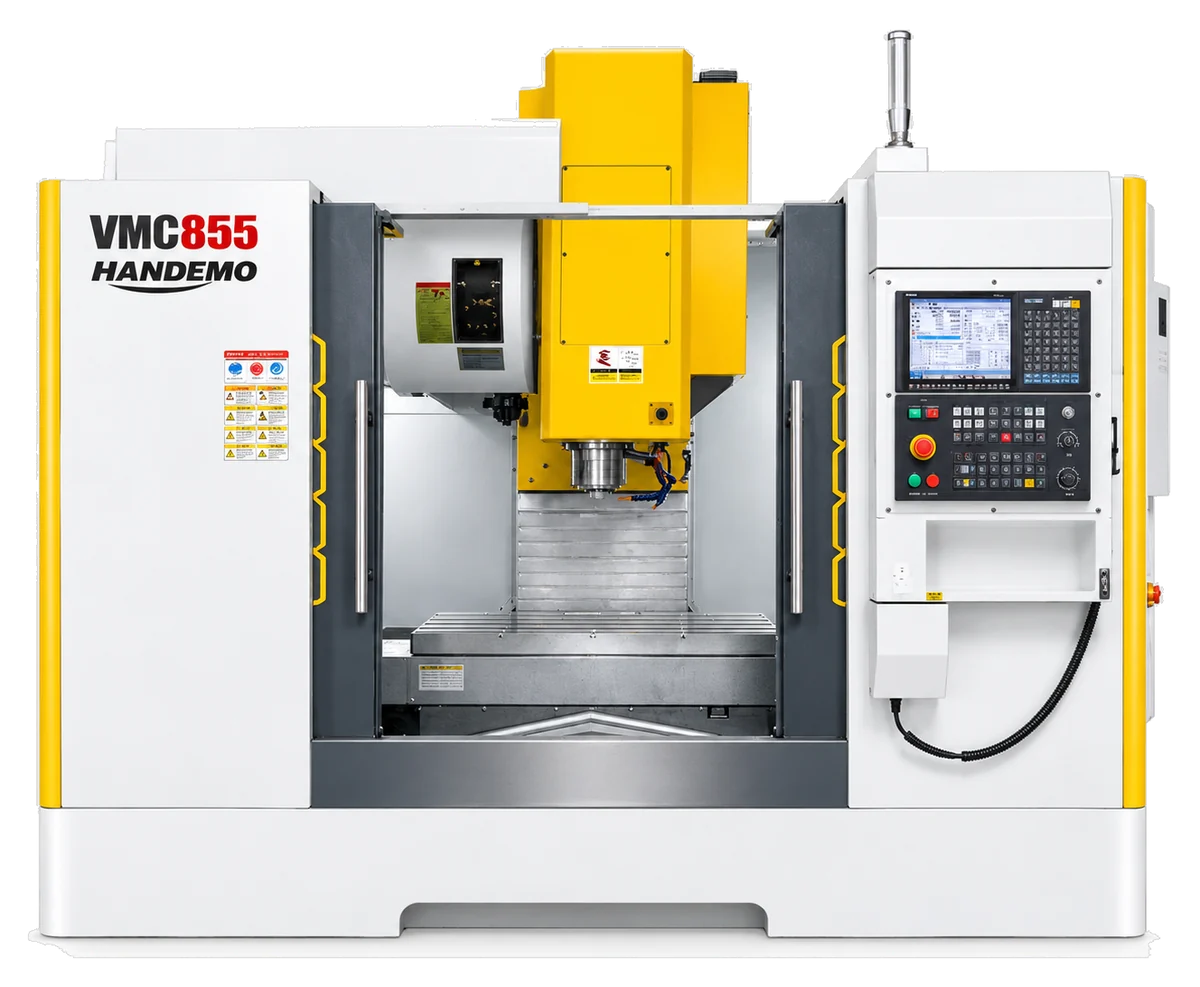

VMC855 vertical machining center
The volume model: 1000 × 550 mm table, 500 kg load, 24-station magazine, up to 32 m/min rapids.
1000×550 mm table800/550/550 mm travelBT40-150

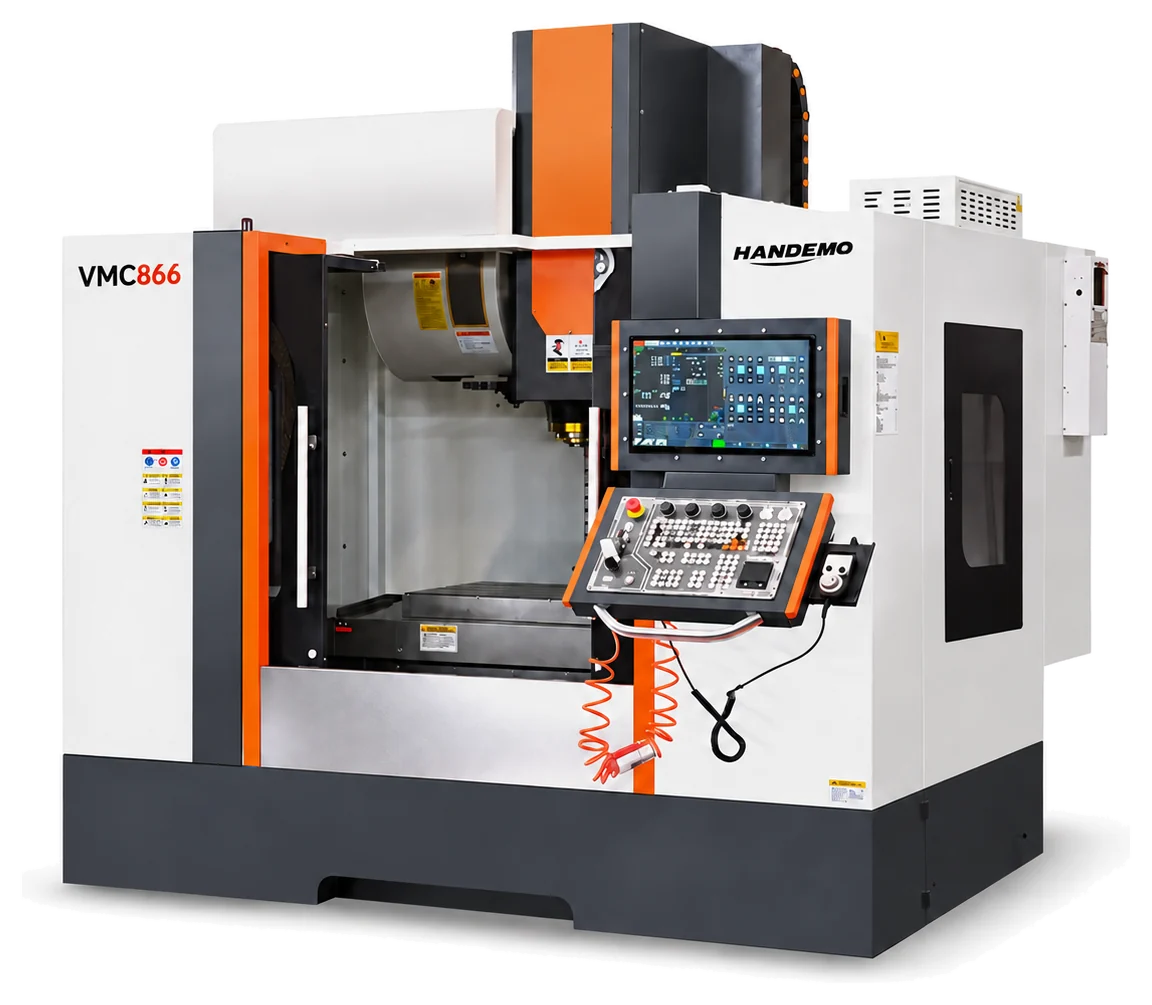

VMC866 · General-purpose VMC
850 / 600 / 600 mm travel on a 1000 × 550 mm table, 600 kg table load, 32 m/min rapids.
Why this size

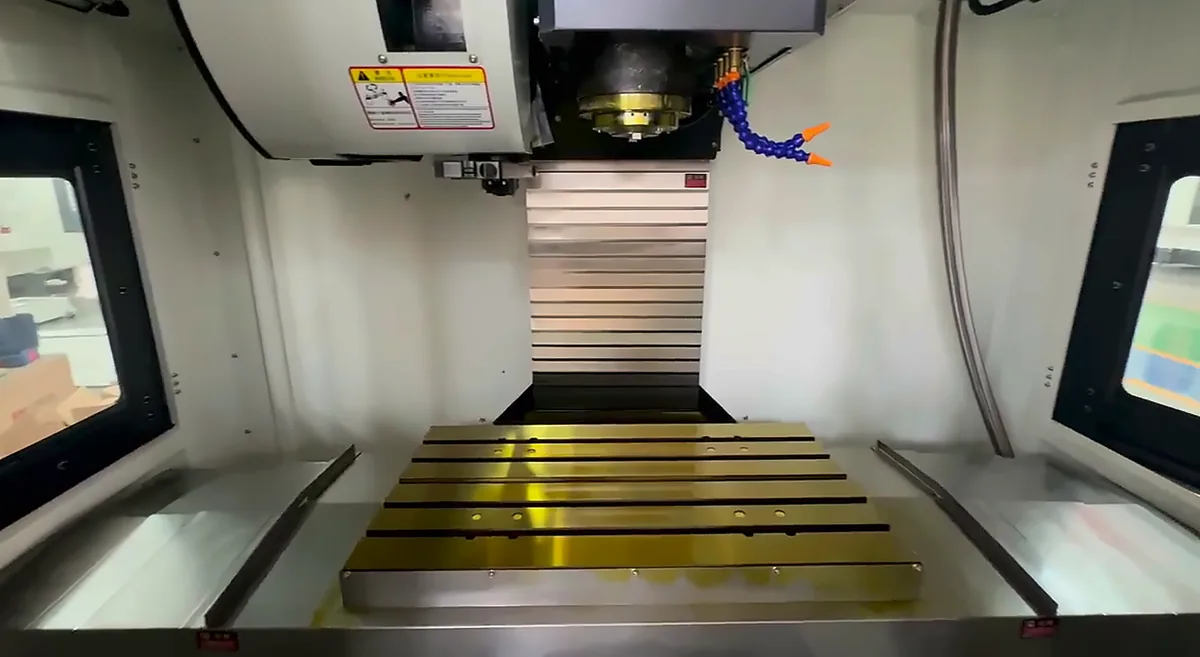

The 866 covers a 1000 × 550 mm table with 850 mm of X travel, 600 mm in Y and 600 mm in Z, and carries 600 kg. That is a fixture plate plus a mid-size housing before the frame has to grow.
X and Y rapid at 32 m/min and Z at 24 m/min. On a mixed batch that shortens the positioning time between features, which is where a smaller frame loses its day.

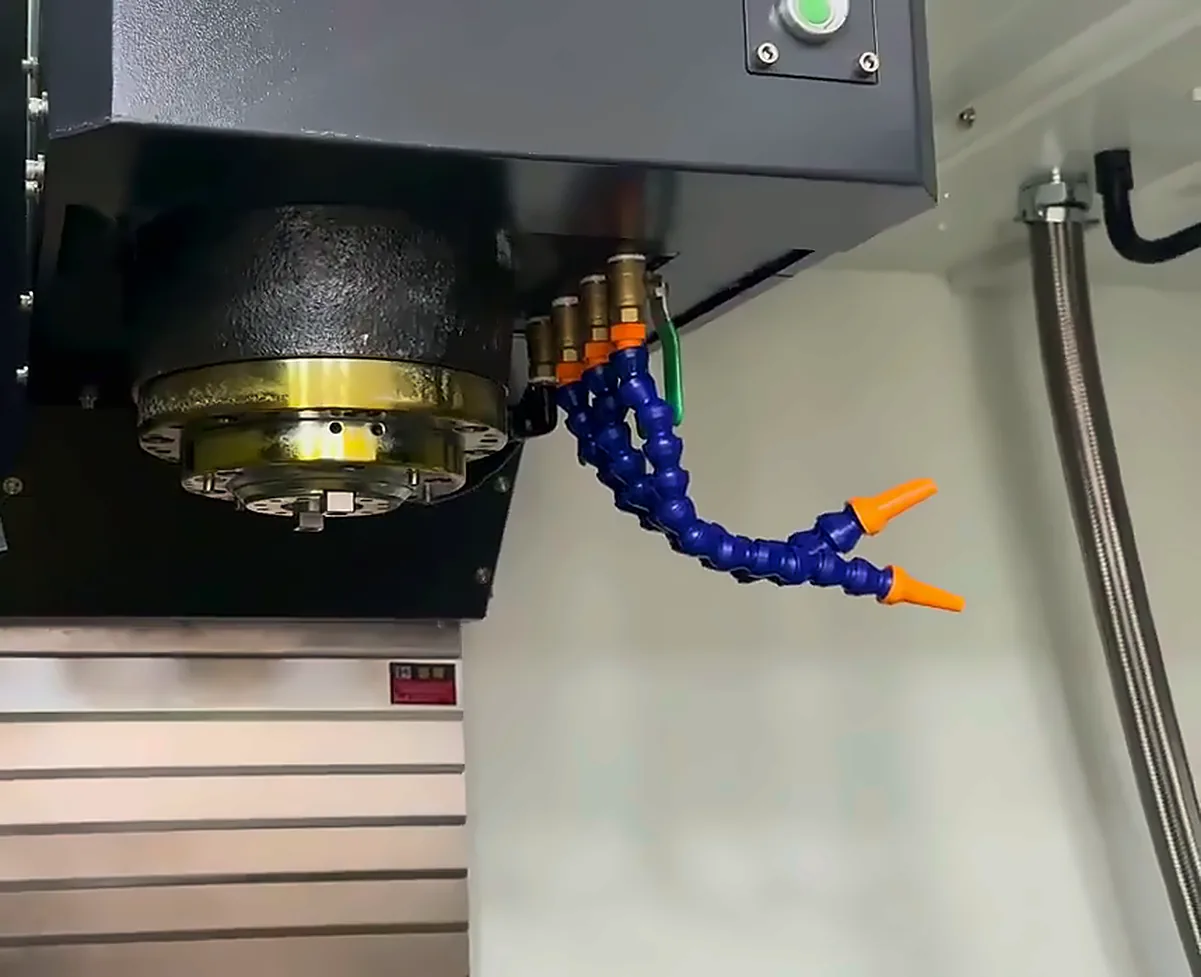

A BT40 spindle with a 150 mm nose runs to 8,000 rpm. The machine stands on a 2600 × 2380 mm footprint and weighs 5,300 kg, so it needs a level floor rather than a special foundation.
Photographs show the platform family and options. Final configuration is confirmed on the signed specification sheet.

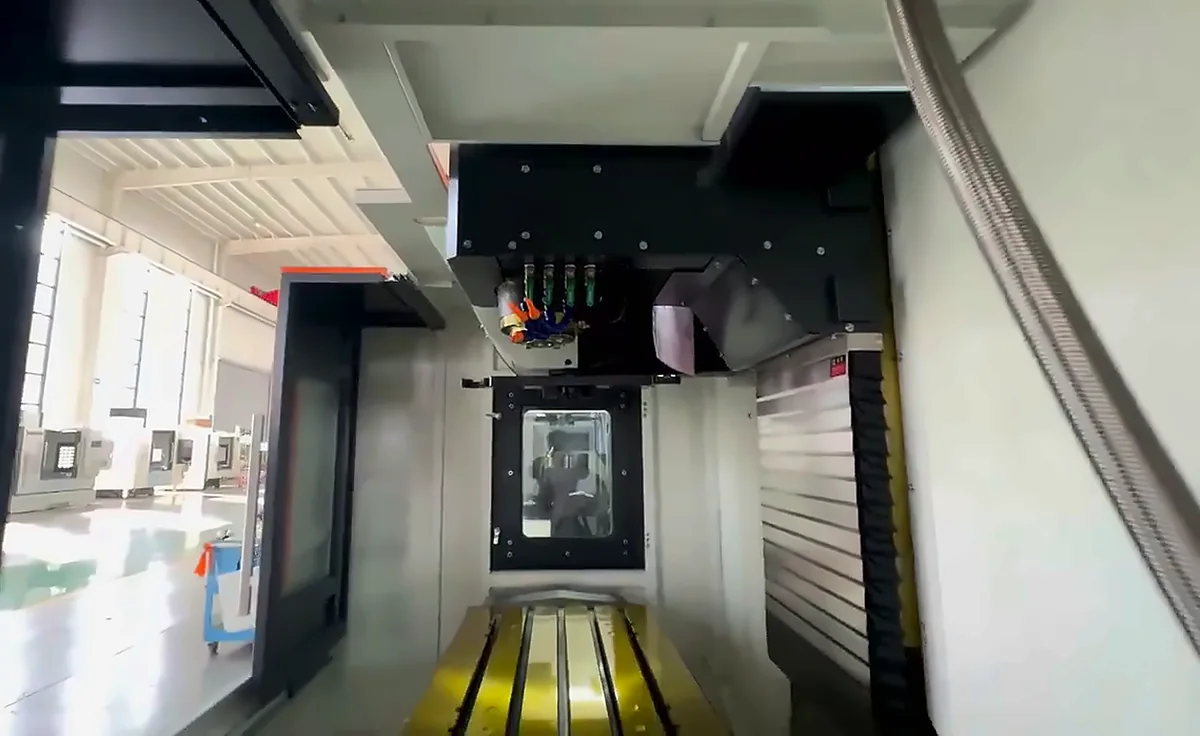

Machine in operation
Roughing, semi-finishing and a drilling cycle on a 1000×550 table, filmed at the plant with the standard configuration.
VMC866 vertical machining center running a roughing, semi-finishing and drilling sequence on a 1000×550 mm table with a BT40-150 spindle.
Reference specification
A missing value means the item was not listed on the source sheet, not that the machine lacks the feature. The signed specification sheet lists everything for your configuration.
Typical parts
Configuration
Material, blank size, features, tolerance.
Milling, drilling, tapping, workholding.
Batch size, changeover, loading method.
Spindle, coolant, magazine, automation.
Compared with

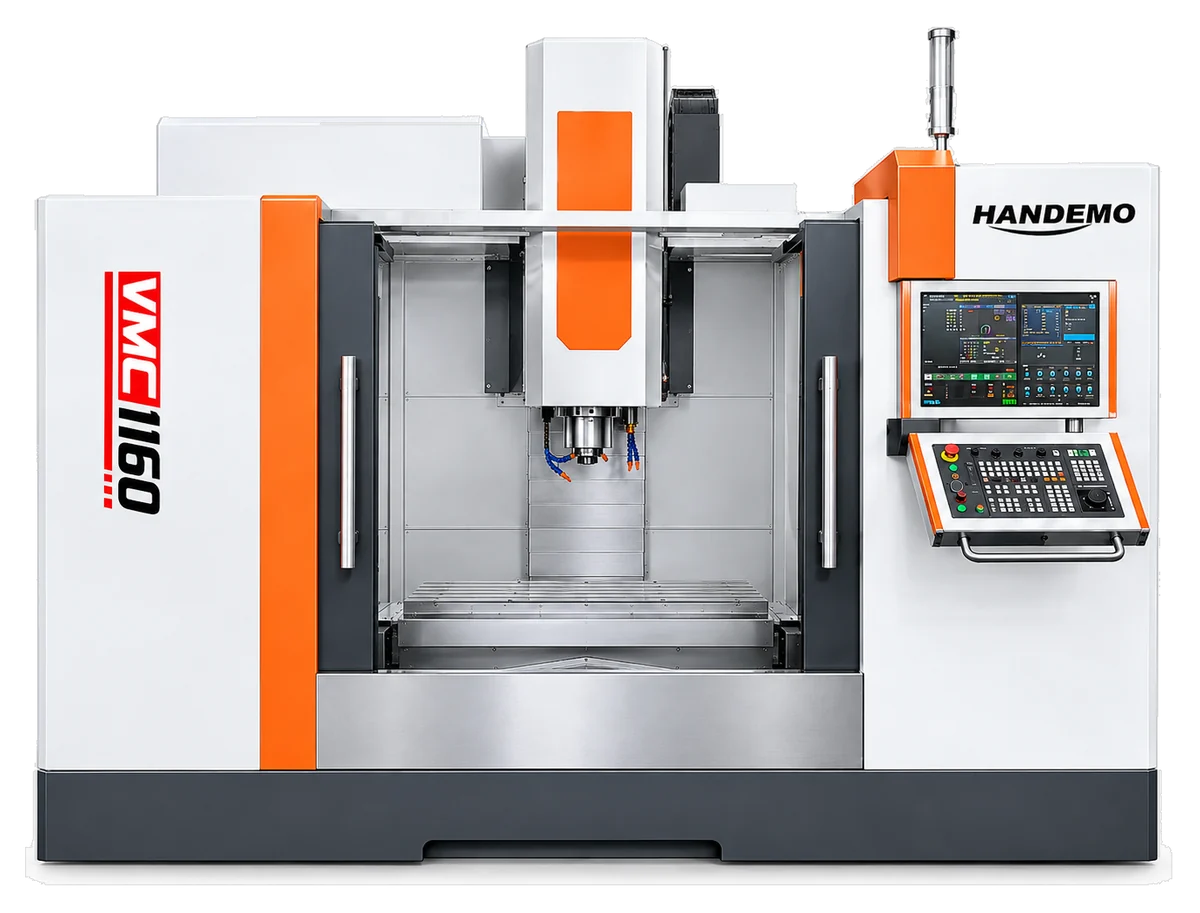

Step up to the VMC1160 when the plate runs past 1000 mm in X and the job needs 1200 mm of travel. For tall parts, the VMC1580 carries 700 mm of Z on a 1600 mm table.
The volume model: 1000 × 550 mm table, 500 kg load, 24-station magazine, up to 32 m/min rapids.
1200 × 600 mm table at 800 kg, 1100 mm X travel, box ways on a 6500 kg frame.
1200 / 650 / 650 mm travel on a 1200 × 600 mm table, 5 × 18 mm T-slots at 100 mm centres.
Service & support
Drawing, material, tolerance and batch size.
Controller, spindle, tooling and workholding.
Foundation, utilities and agreed training scope.
Information, parts and service arrangements.
Send the drawing, material and batch size. Travel, table load and spindle get checked against it.
