Heavy-duty VMC
VMC1265 vertical machining center
1200 / 650 / 650 mm travel on a 1200 × 600 mm table, 5 × 18 mm T-slots at 100 mm centres.
1200×600 mm table1200/650/650 mm travelBT40-150

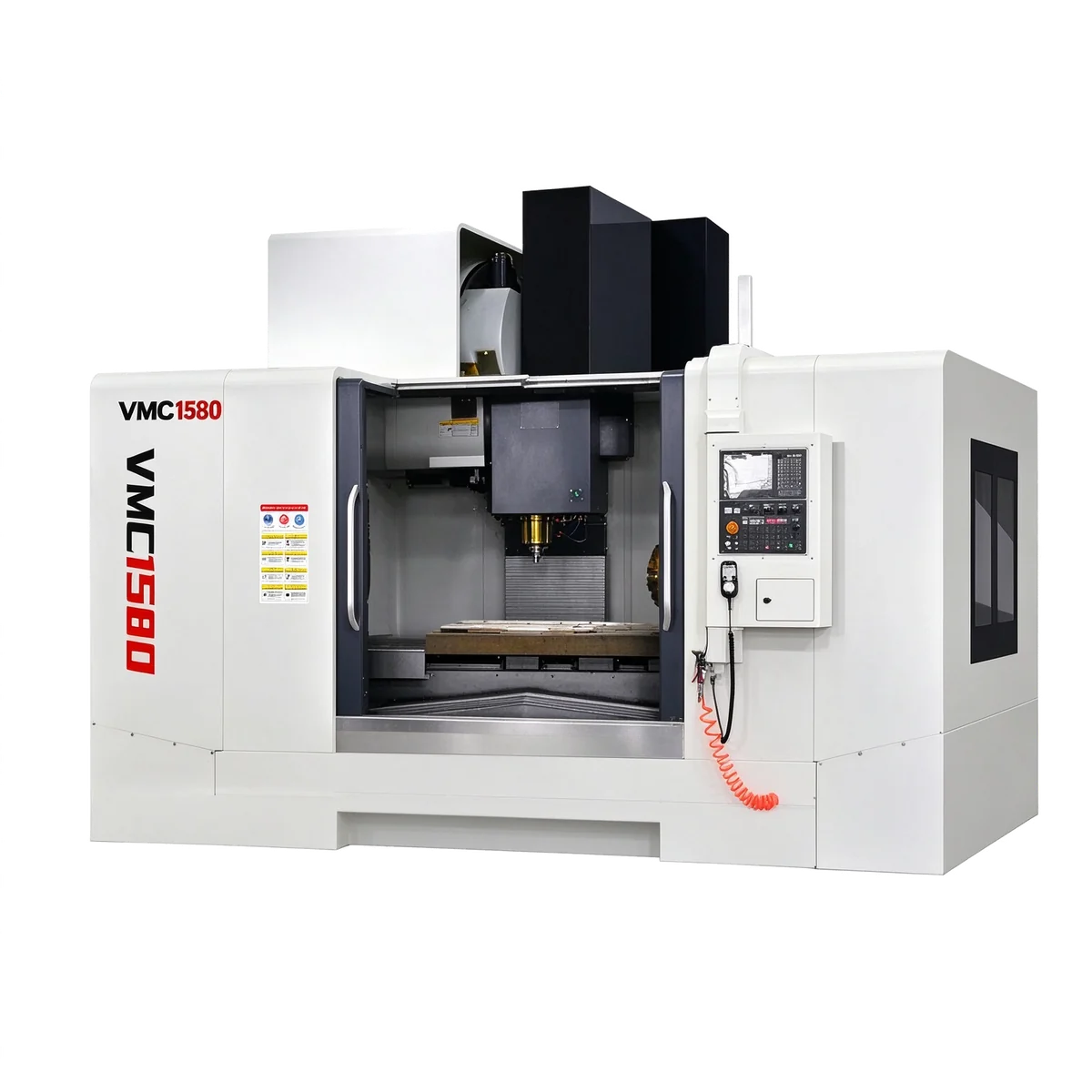

VMC1580 · Heavy-duty VMC
A 1600 x 800 mm table at 1500 kg, 1500 / 800 / 700 mm travel and a BT50-155 spindle.
Why this size
The VMC1580 puts a 1600 x 800 mm table, rated to 1500 kg, under 1500 mm of X travel. Die plates, long weldments and machine frames that would need a second setup on a 1200 mm table are machined through in one operation.
Y travel is 800 mm and Z travel 700 mm, with 860 mm of spindle nose clearance at the top of the stroke. Deep pockets and tall fixtures stay inside the envelope without stepping the part around the table.
A BT50-155 taper at 6,000 rpm carries the torque for heavy roughing in steel and cast iron, and the larger taper resists deflection in deep cavities. A 24-station disc magazine changes tools in 2.5 seconds. At 10,000 kg on a 4300 x 3200 x 2800 mm footprint, rapids of 20 / 20 / 15 m/min suit the distances between features on work this size.
Photographs show the platform family and options. Final configuration is confirmed on the signed specification sheet.
Machine in operation
Roughing, semi-finishing and a drilling cycle on a 1600×800 table, filmed at the plant with the standard configuration.
VMC1580 vertical machining center running a roughing, semi-finishing and drilling sequence on a 1600×800 mm table with a BT50-155 spindle.
Reference specification
A missing value means the item was not listed on the source sheet, not that the machine lacks the feature. The signed specification sheet lists everything for your configuration.
Typical parts
Configuration
Material, blank size, features, tolerance.
Milling, drilling, tapping, workholding.
Batch size, changeover, loading method.
Spindle, coolant, magazine, automation.
Compared with

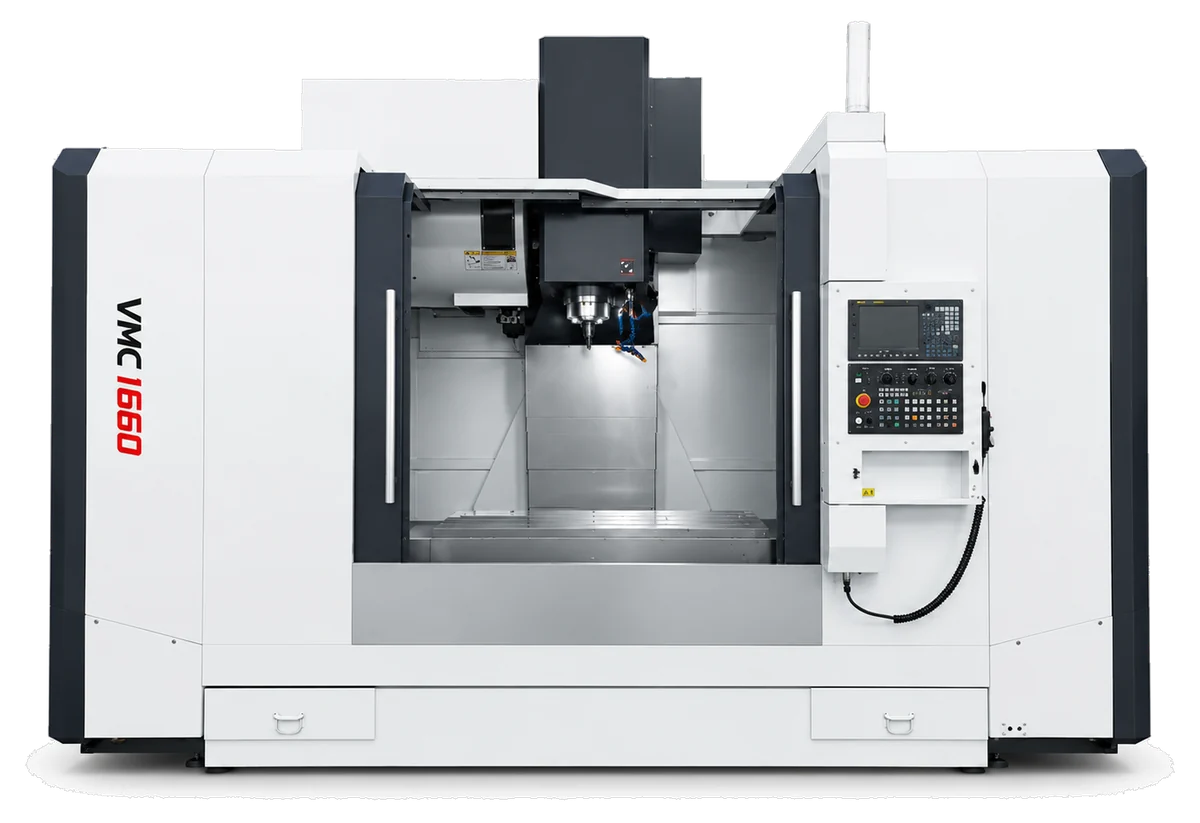

If the part is wide rather than long, the VMC1690 adds 900 mm of Y travel on a 1600 mm table; the VMC1370 covers smaller plates at 700 / 750 mm of Y and Z.

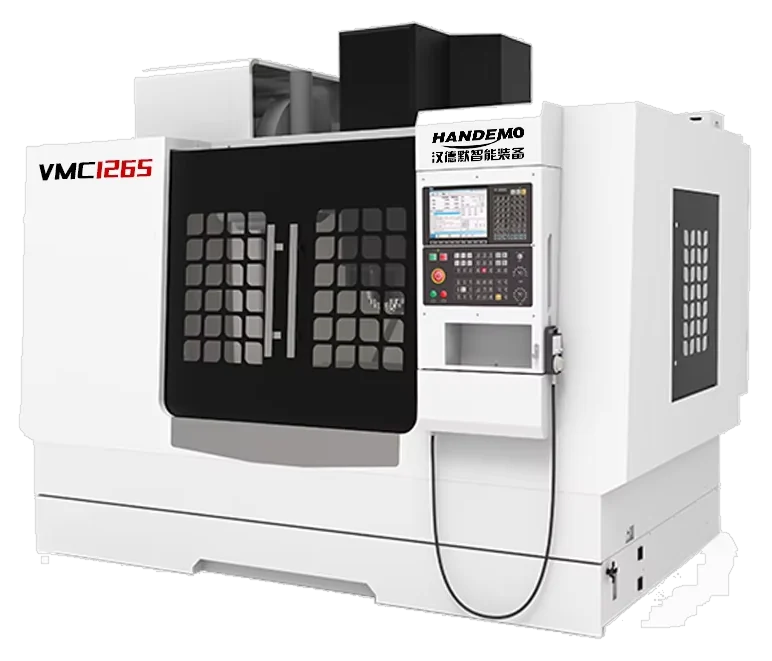

1200 / 650 / 650 mm travel on a 1200 × 600 mm table, 5 × 18 mm T-slots at 100 mm centres.

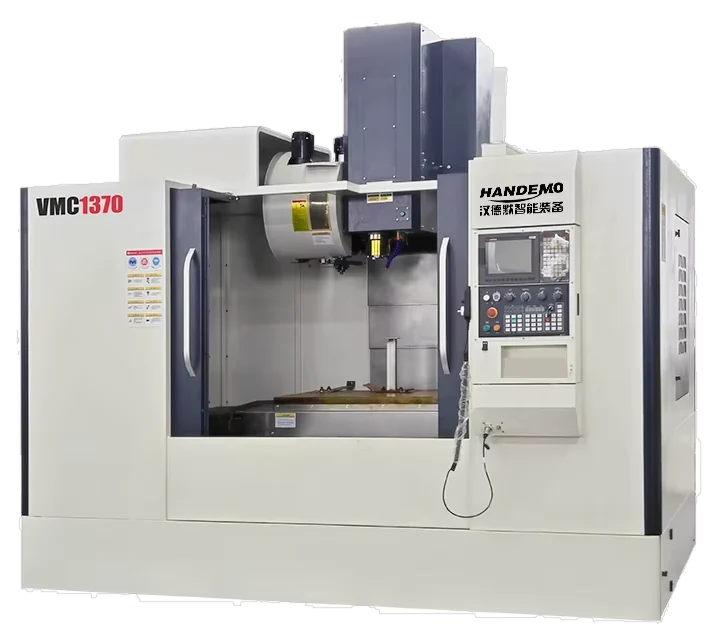

1400 × 700 mm table, 1300 / 700 / 750 mm travel, box ways, 9000 kg frame.
1600 × 800 mm table at 1500 kg, 1600 / 900 / 700 mm travel, BT50-190 at 6000 rpm.
Service & support
Drawing, material, tolerance and batch size.
Controller, spindle, tooling and workholding.
Foundation, utilities and agreed training scope.
Information, parts and service arrangements.
Send the drawing, material and batch size. Travel, table load and spindle get checked against it.
