VMC1370D · Mold & die VMC
VMC1370D vertical machining center
Review fine surfacing on larger molds.
- Travel X/Y/Z
- 1300 / 700 / 750 mm
- Table size
- 1400×700 mm
- Spindle
- BT40-150
VMC1370D · Mold & die VMC
Review fine surfacing on larger molds.
Machine details
The 1370D is the mold-oriented version of the VMC1370 family, tuned for high-speed precision mold and electrode machining with improved contouring performance.
The D-series machine body is built heavier than standard models to damp vibration during finishing cuts, improving surface quality on hardened steel and pre-hardened mold materials.
1300/700/750 mm travel with a rigid structure supports medium mold machining where dimensional stability and surface finish decide part quality.
Configured for frequent program changes and multi-cavity work, the 1370D balances speed and accuracy for mold shops running mixed workloads.

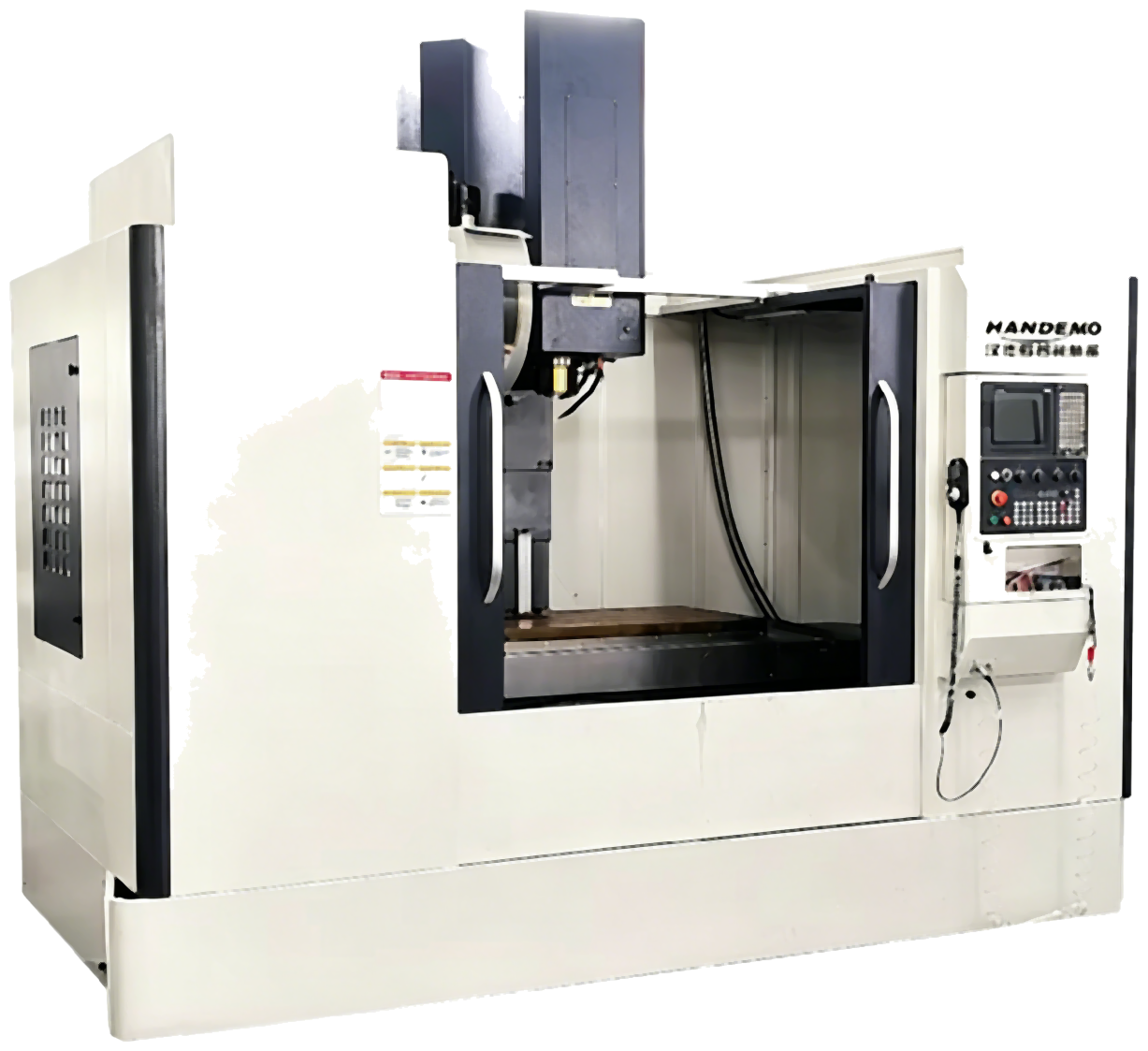

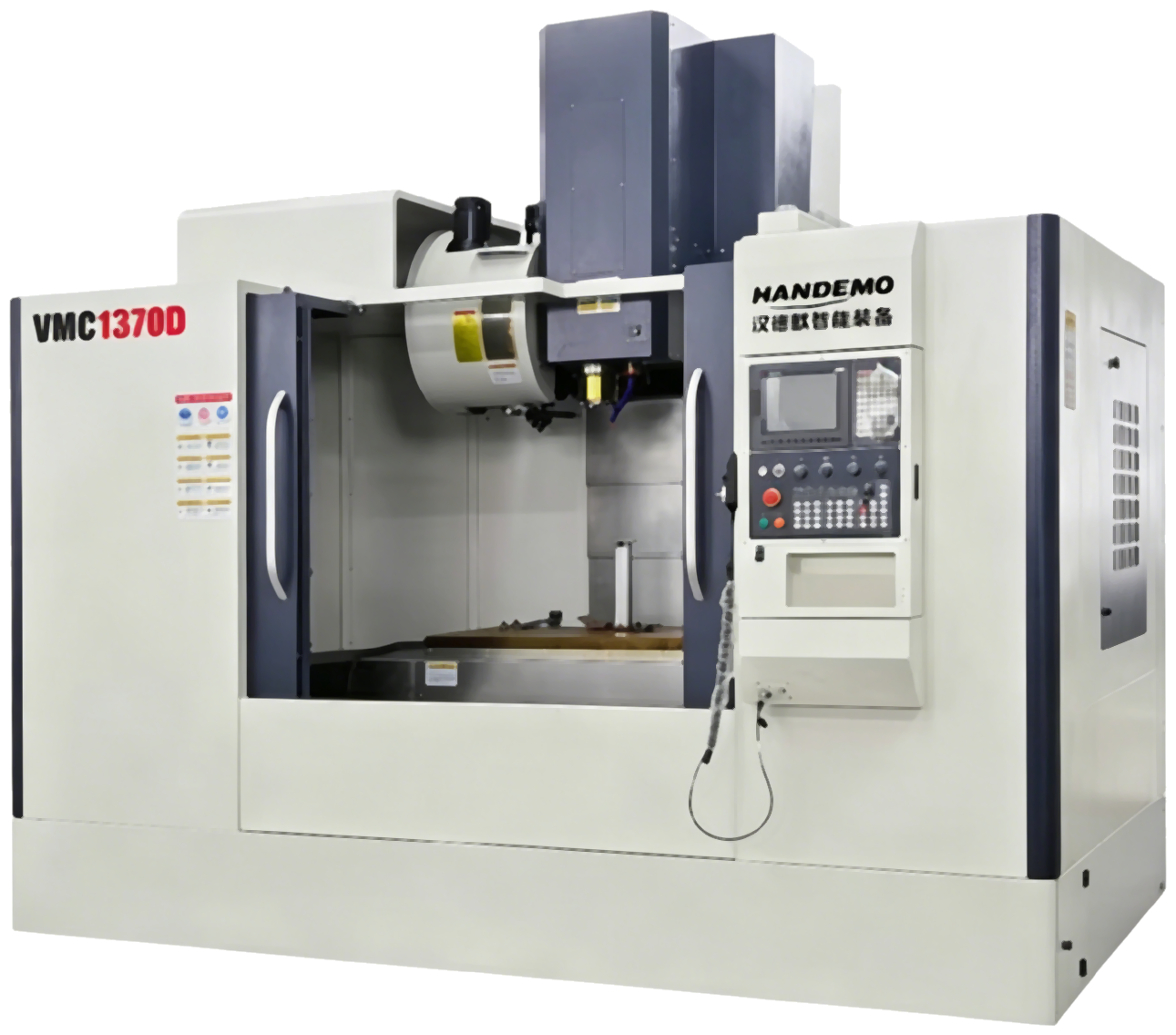

Detail photographs show the machine family and options. Final configuration is confirmed on the signed specification sheet.
Reference specifications
Missing values mean the item was not listed on the source sheet, not that the machine lacks the feature. Request the signed specification sheet for a full list.
Configuration
Material, blank size, features and tolerance.
Milling, drilling, tapping and fixturing.
Batch size, changeover and loading method.
Spindle, tooling, workholding and automation.
Molds and cores, plates and fixtures, housings, brackets and general prismatic parts. Application fit is confirmed against the part drawing.
Machine, standard tooling package, controller, documentation and commissioning scope as listed in the quotation.
Service & support
Drawing, material, tolerance and batch size.
Controller, spindle, tooling and workholding.
Foundation, utilities and agreed training scope.
Information, parts and service arrangements.
Same platform family
Discuss cavity work on a 1200 mm envelope.
Send the drawing, material and batch size. We will review the configuration with you.
